BOAT RANGE

10m Twin Outboard

The multi-award winning Naiad 10m design, packs a punch with an extremely strong and fast hull. The cabin/layout is customised to client requirements making a perfect match.

Features:

  • Stepped hull
  • Capacity for twin high power outboards
  • Front well deck option
  • Open or enclosed cab

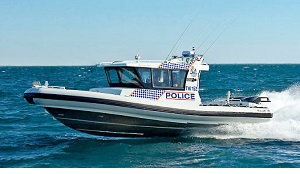

Kaikoura CG 1.JPG

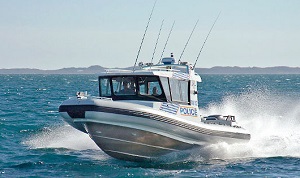

The Naiad 10m Patrol is the ideal fast response vessel. It is large enough to handle rough conditions but still small enough, with air filled fenders, to come alongside other craft without damage.

The 23 deg dead rise coupled with the fine entry gives a soft and forgiving ride. The pontoons also act as a shock absorber to reduce crew fatigue. The stepped hull increases efficiency, adds stability in tight turns, reduces the pre-planning hump and softens the ride.

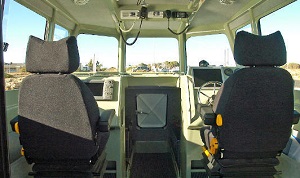

The cabin can be open or fully enclosed and provides ideal shelter for crew. There is plenty of storage for gear and/or safety equipment. Large windows provide excellent all round visibility. Bunks, medical, galley and toilet facilities can be fitted to meet customer requirements.

Deck area at the rear is spacious and well arranged for working with tow lines or extracting people out of the water and treating the injured.



Specifications

Length O/A 10 metres
Beam O/A 3.2 metres
Beam Internal 2.1 metres
Tube Diameter 550 mm
Deadrise 23 Deg
Weight estimated 2600 kgs
Power  2 x 225hp  4 stroke outboards
Speed 30-35 knots cont. 43 knots max.
Seating 4 persons
Fuel tank capacity 600 litres
Range approx 200 nautical miles
